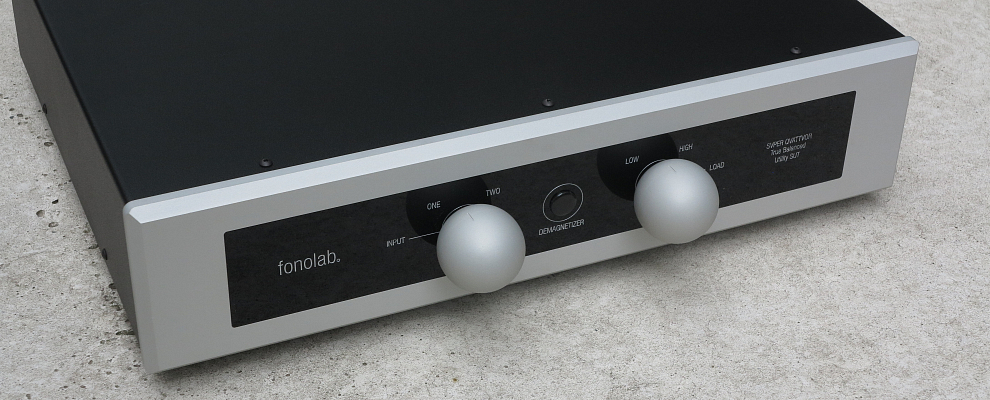

SVPER QVATTVOR
Reference Balanced MC Transformer System
SVPER QVATTVOR Dedicated MC represents the most complete MC implementation within the QVATTVOR architecture.
Designed for advanced analog systems, it combines fully balanced transformer operation, dual-input flexibility, and reference-level system integration within a single platform.
Concept
Unlike specialized implementations focused on a single operating condition, SVPER QVATTVOR Dedicated MC provides controlled access to multiple MC cartridges while preserving fully balanced signal processing throughout the transformer stage.
The architecture is optimized for users requiring a reference-level MC front end without compromising signal integrity or system flexibility.
Architecture

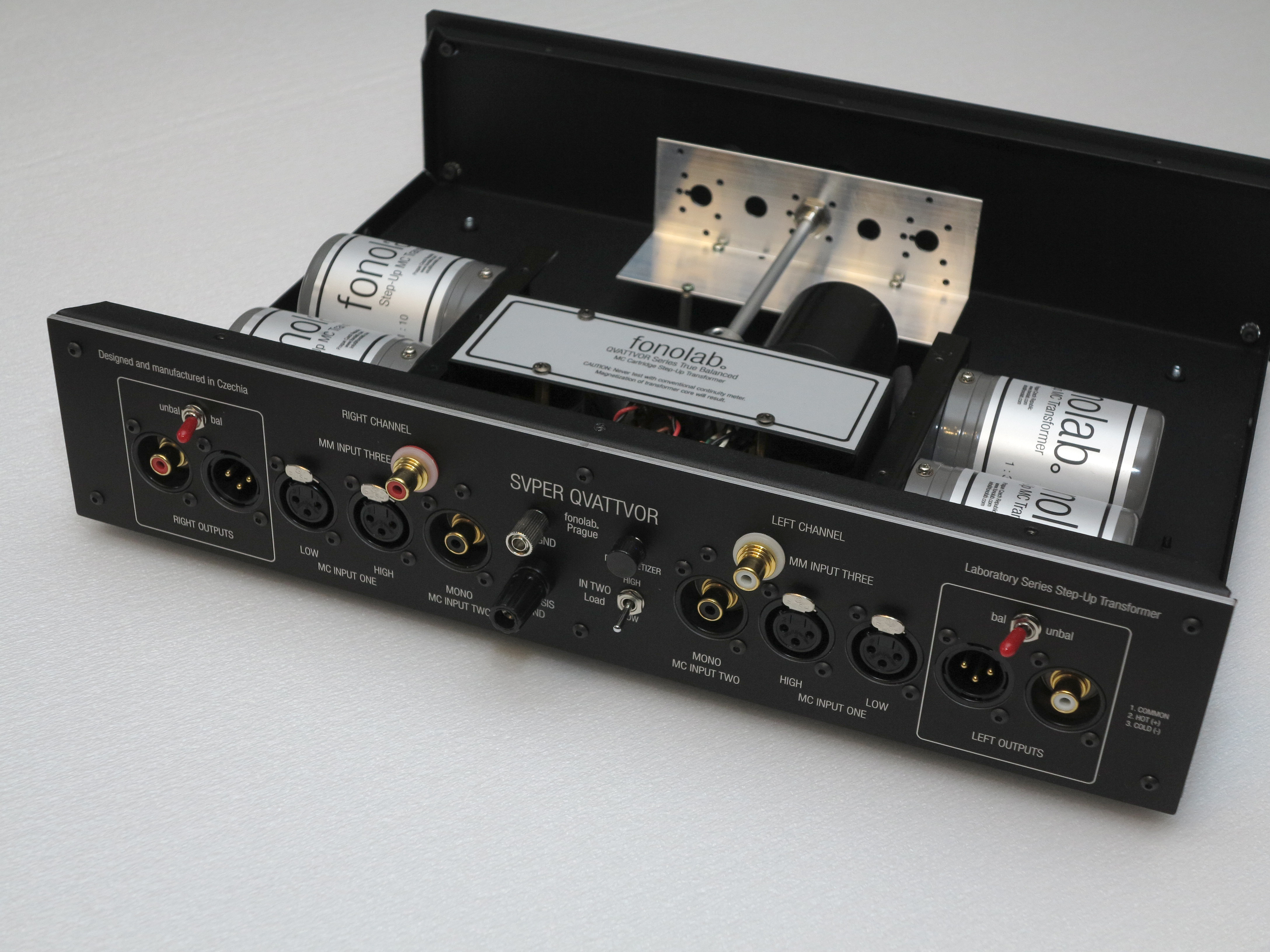

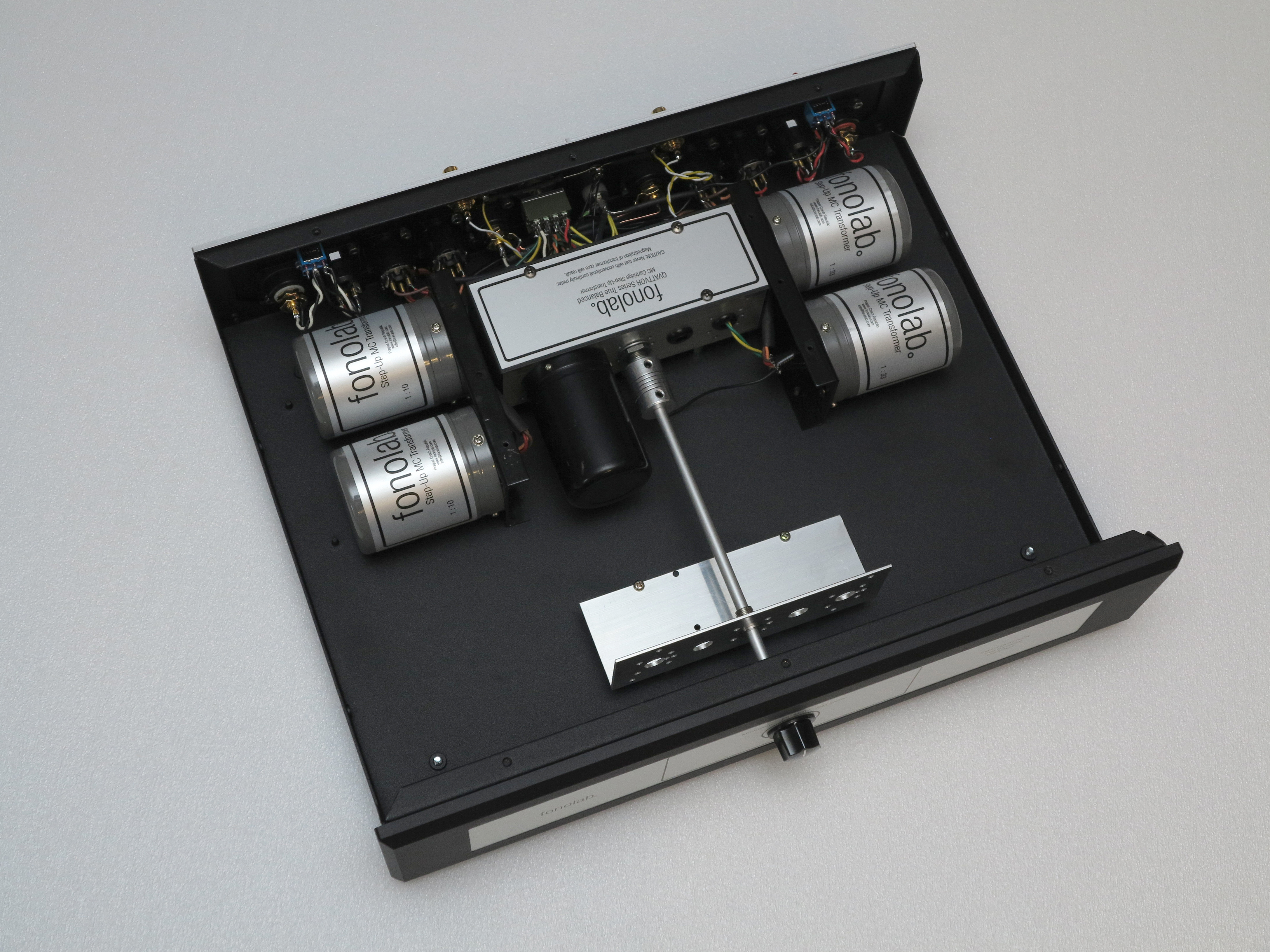

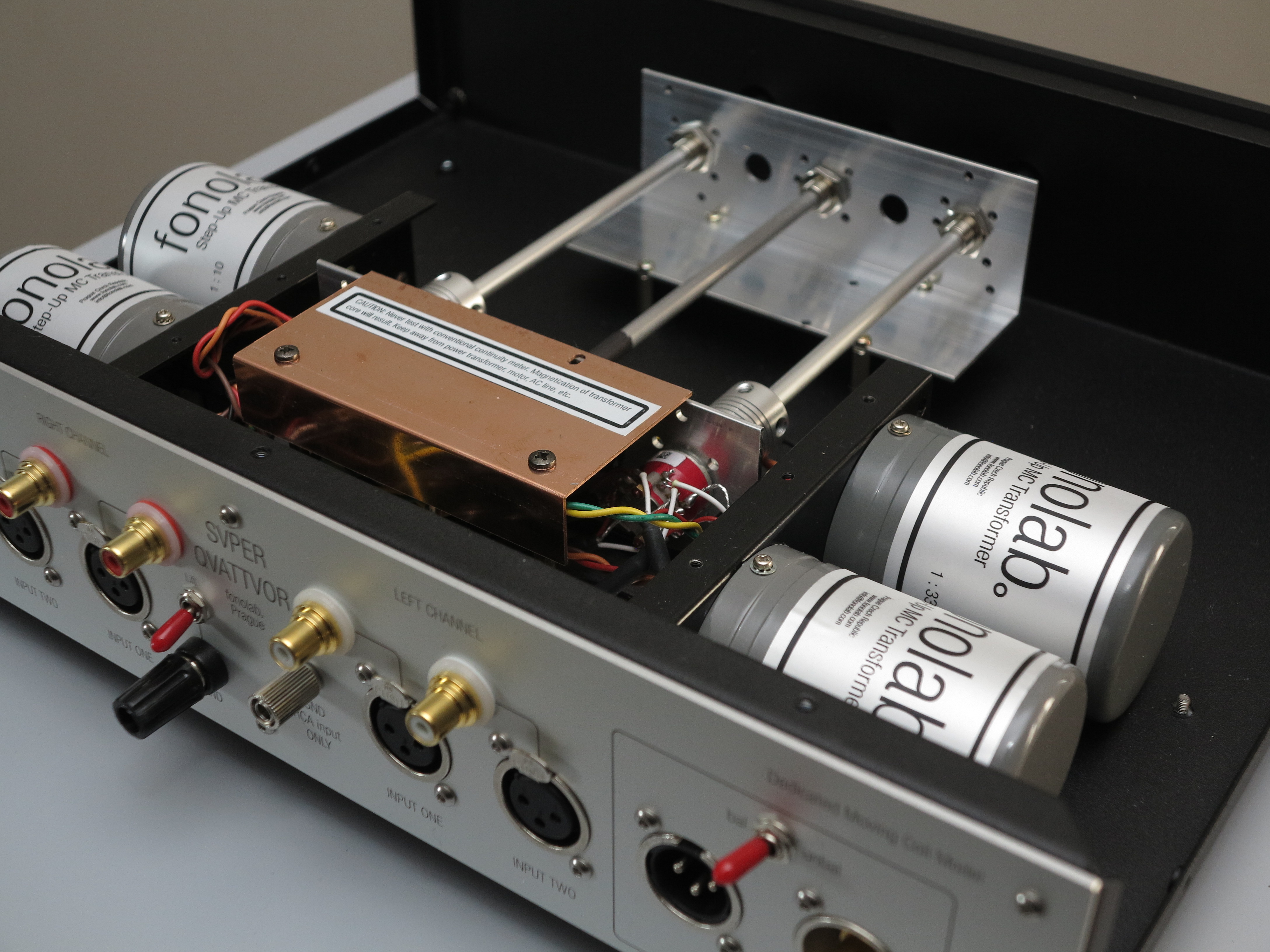

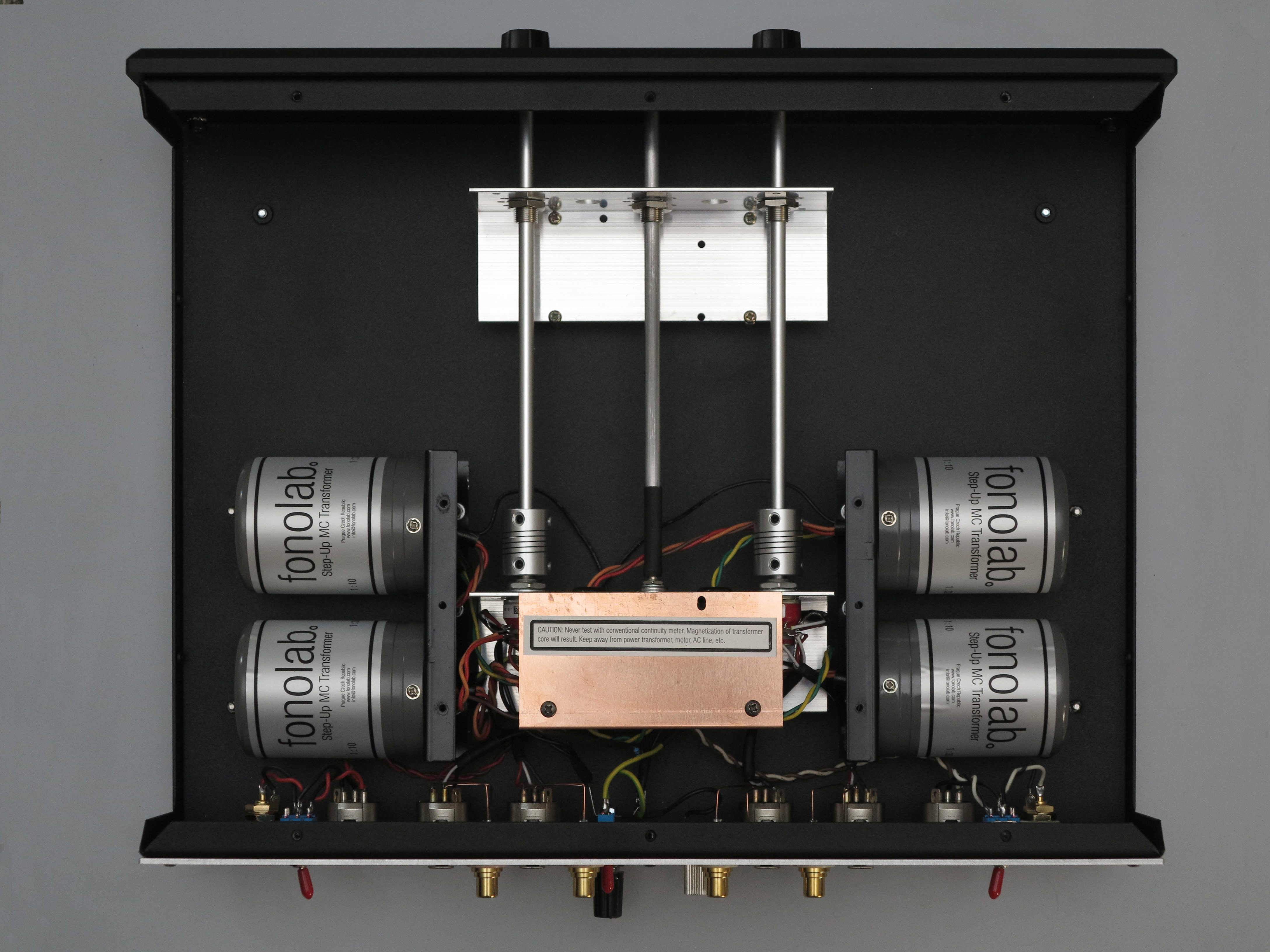

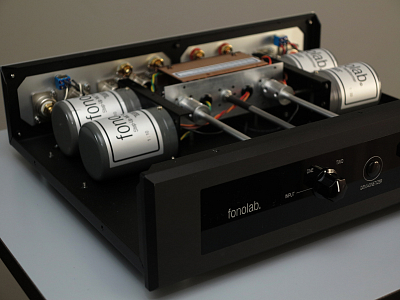

Each channel operates through matched transformer pairs in a fully balanced configuration.
The system provides two independent MC inputs, each supporting both RCA and XLR connection formats.
The RCA input operates as a floating differential interface, ensuring true balanced signal processing within the transformer itself.
Both RCA and XLR outputs are available for seamless integration with a wide range of phono stages and reference analog systems.
Key Features
Fully balanced transformer architecture.
Two independent MC inputs.

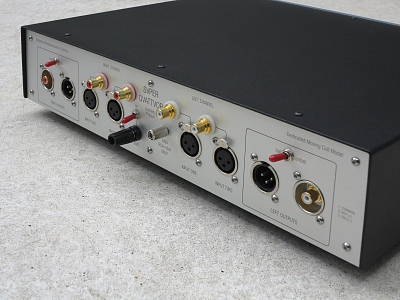

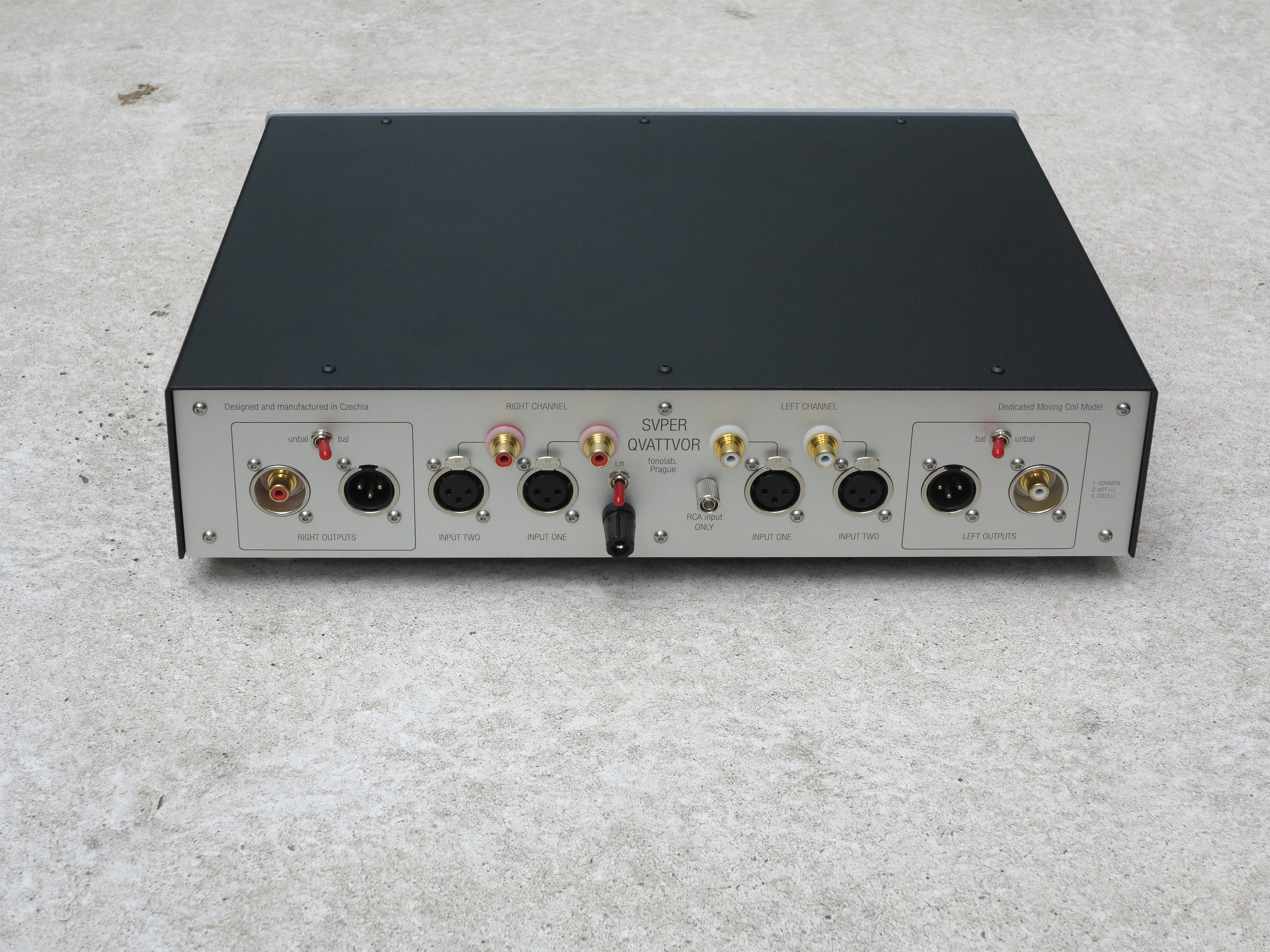

RCA and XLR connectivity on both inputs and outputs.
Floating differential RCA input stage.
Matched transformer pairs.

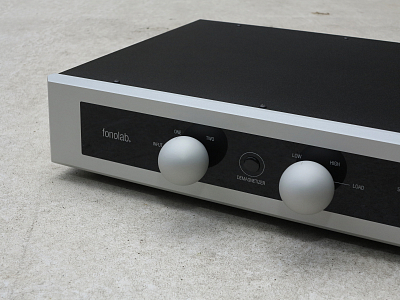

Switchable ratios: 1:33 / 1:10.
Integrated demagnetization function.
Enhanced grounding management with ground-lift control.

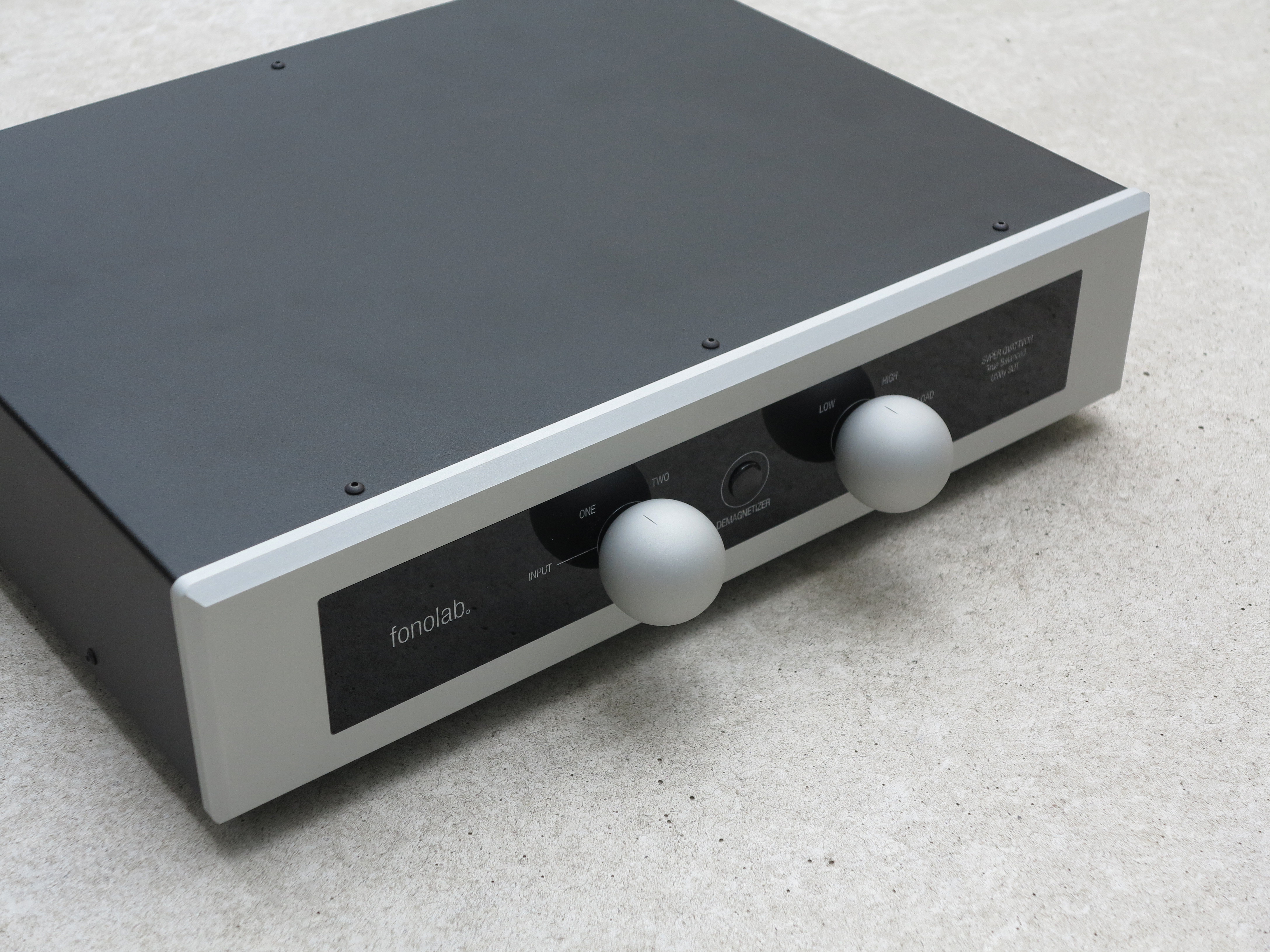

Rigid steel chassis with optimized shielding and damping.
Professional-grade Grayhill and NKK switching components.
Specifications:
Input impedance: 0–5 / 40 Ohms
Output impedance: 4k Ohms
Frequency response: 10Hz to 120kHz (+0.5dB–1.0dB)
Channel balance: within 0.5 dB
Ratio: 1:33 / 1:10
Phase characteristics: Within 10° (20Hz–50kHz)
Dimensions WxDxH: 386 x 295 x 95 mm
Weight: 11 kg
SVPER QVATTVOR is also available as an MC+MM version incorporating:
• dedicated MM input with 1:2 interface balanced stage
for users requiring a complete analog front-end within a single platform.
For specialized configurations and dedicated system implementations, please contact your fonolab Dealer or Contact Us directly.
Custom Laboratory Series edition of the SVPER QVATTVOR SUT is specifically designed
for fine operation with stereo / mono MC cartridges and MM cartridge in balance mode.
