Custom fonolab Moving Coil Step-Up Transformers
Our clients often ask for various modifications and options to expand functionality or simply to make their order original.

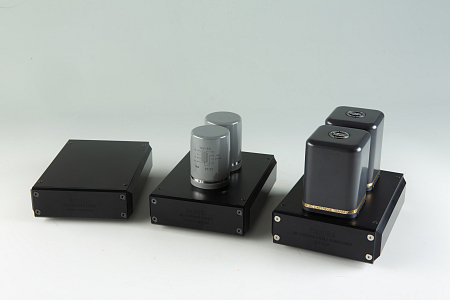

Below we are presented some models released in limited edition or in a single copy.
The common thing that unites our products is the following points.
Traditional hand and CNC made parts are standard.
The custom-made aluminum/copper case equipped with high efficient internal damping materials.
The parts are assembled with the stainless-steel non-magnetic screws to minimize the influence of the magnetic distortion; thereby the clear sound has been realized.
Internal wiring made by OFC shielded high grade cable.
Exotic wiring upgrades such as solid core silver wiring are also available.
We use high quality brass RCA connectors (gold plated or rhodium plated) with Teflon insulation.
The transformers are thoroughly demagnetized and checked in our laboratory.
Please Contact Us for assistance with your machining needs.
Custom modifications available on request

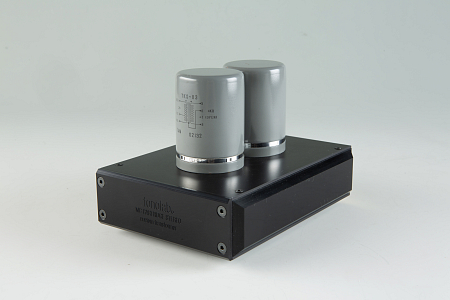

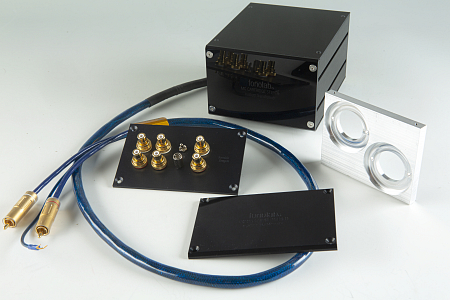

Tamura SUT-83S Step-Up MC Transformer
with direct output by Ortofon 6NX-TSW-1010 cable
Tamura SUT-83S High-End Tamura Step-Up transformer employs supersize toroidal core and exclusive winding technology.
Specifications:
Input impedance: 3-10 / 10-40 Ohms
Output impedance: 47k Ohms
Frequency response: 10Hz to 50kHz (+-0.25dB)
Max operation level: 10dBm
Ratio: 1:40 / 1:10
Voltage gain: 32,04 dB / 20 dB

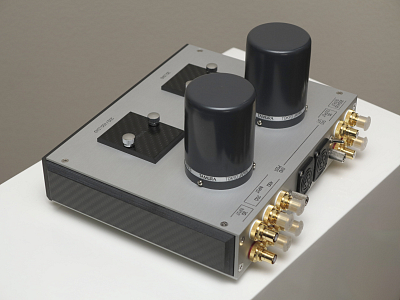

Tamura TKS-22 Laboratory series Step-Up transformer with LOAD EQ module.
There are three inputs, for 30 Ohm 250 Ohm and 600 Ohm MC cartridge. Internal wiring made by OFC copper wires.
Specifications:
Input impedance: 30 / 250 / 600 Ohms
Output impedance: 50k Ohms
Frequency response: 20Hz to 30kHz (+-1.0dB)
Max operation level: 10dBm
Ratio: 1:41 / 1:14 / 1:9
Voltage gain: 32,3 dB / 22,9 / 19,1 dB

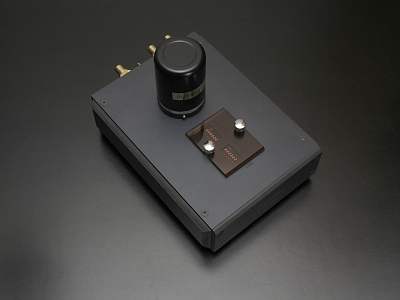

Black Livery Tamura SUT-83TWIN Step-Up MC Transformer with LOAD EQ Module
Tamura SUT-83TWIN Top of the line Tamura Step-Up transformer in compact cane employs toroidal core and exclusive winding technology as only Tamura can provide.
Specifications:
Input impedance: 3-10 / 10-40 Ohms
Output impedance: 47k Ohms
Frequency response: 10Hz to 50kHz (+-0.25dB)
Max operation level: 10dBm
Ratio: 1:40 / 1:10
Voltage gain: 32,04 dB / 20 dB
Please feel free to Contact Us if you would like a specialty model to be created for you.

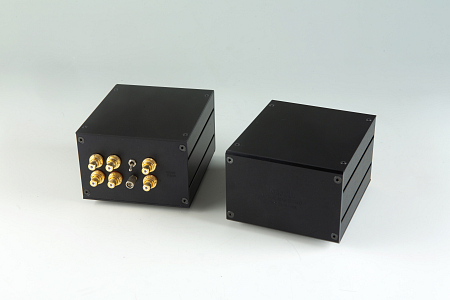

Black Livery Audio-Technica AT700t step-up transformer features a toroidal Tamura transformer with KLEI Harmony RCA Connectors and pure copper bottom panel.
A matched pair of Tamura transformers is demagnetized and installed in a new original case fonolab using high quality RCA connectors and the installation of a floating earth post.
Specifications:
Input impedance: 3 / 20 / 40 Ohms
Output impedance: 47k Ohms
Frequency response: 10Hz to 80kHz (+-0.25dB)
Max operation level: 10dBm
Ratio: 1:50 / 1:20 / 1:14
Voltage gain: 34 dB / 26 dB / 23 dB
