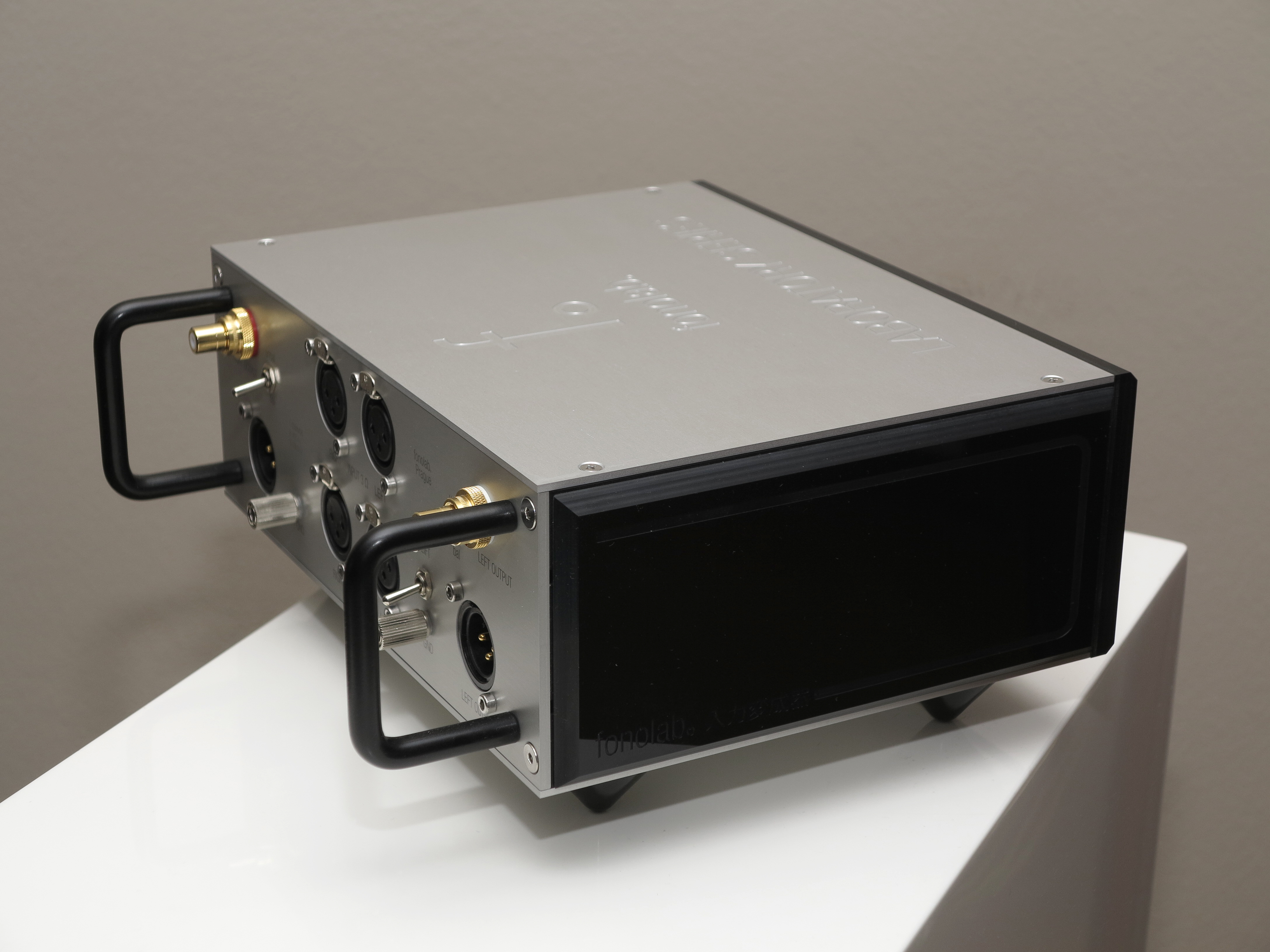

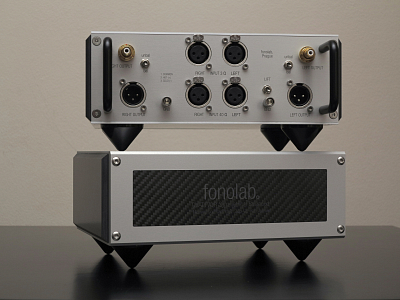

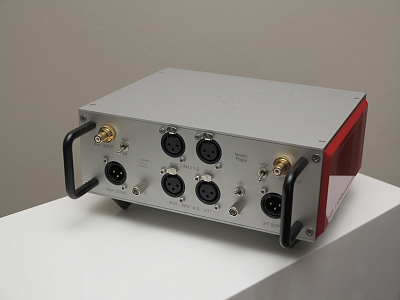

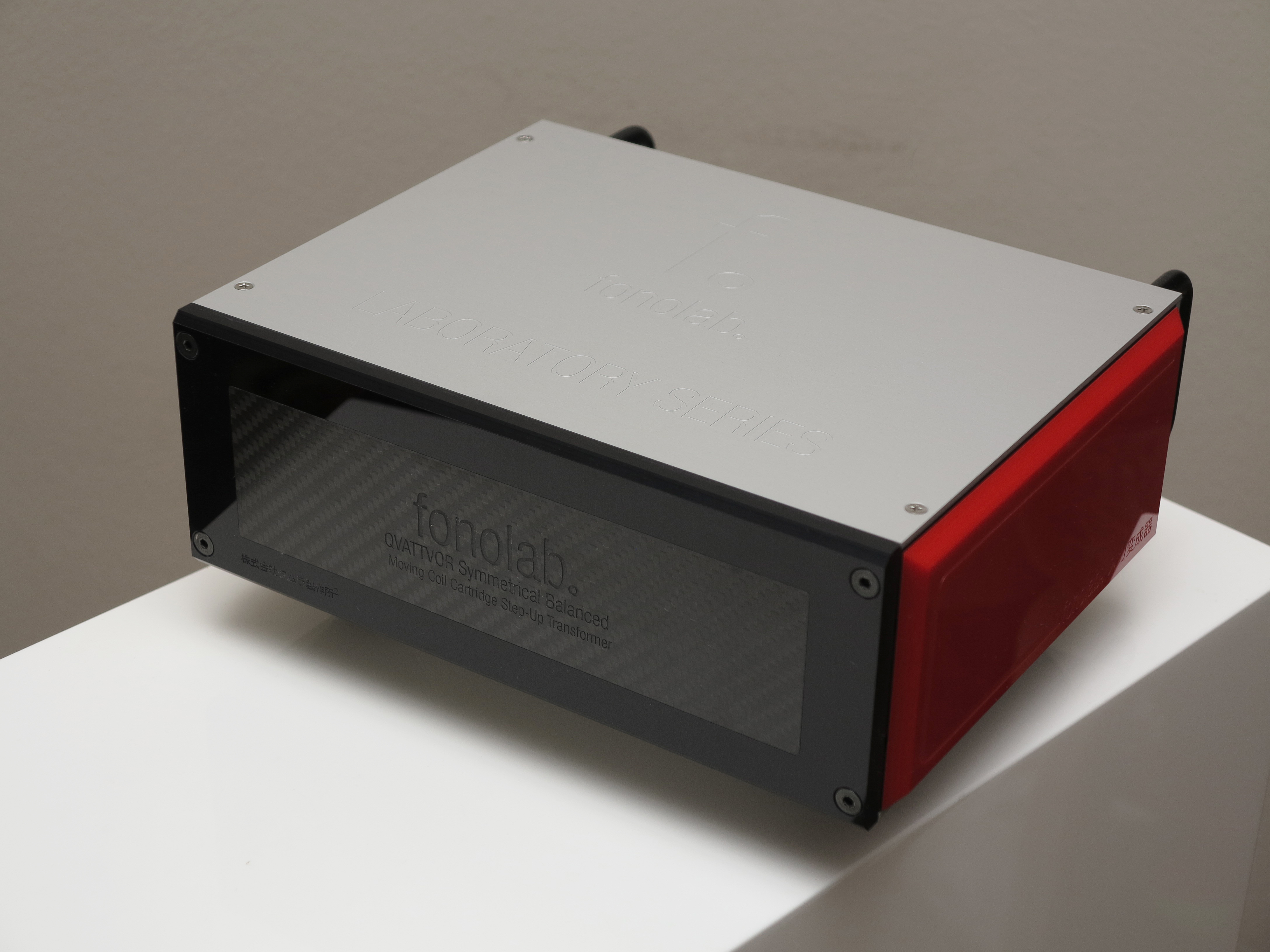

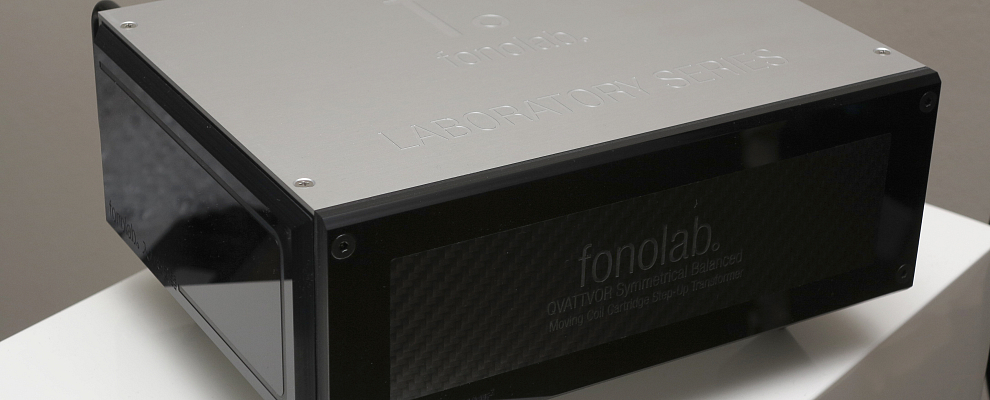

QVATTVOR ONE True Balanced Step-Up Transformer
Standard version for connecting one cartridge with the ability to select ratio.
Matched pair of Tamura Super permalloy core transformers is used for each channel in fully balanced topology.
Transformers which has both ultra-wide band and ultra-small distortion with the possibility of connecting cartridges with an impedance of 0-3 and 40 Ohms.
Traditional Tamura sound in true balanced design with modern shielding and damping technology brings a new level of ultra-low noise and high resolution.
QVATTVOR ONE features

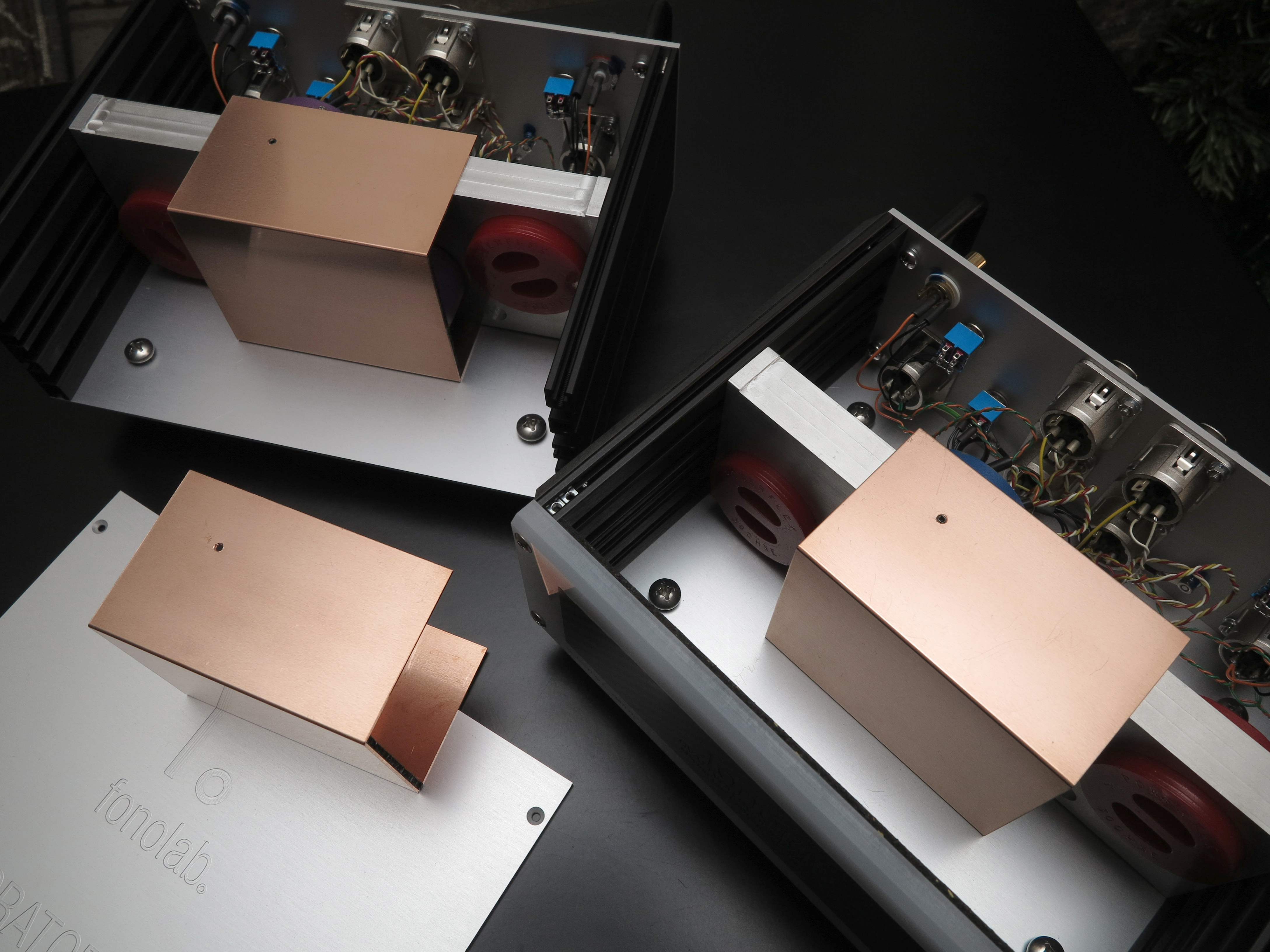

Two Super Permalloy core transformers (specially manufactured by Tamura Corp.) is used for each channel
The custom-made aluminum/copper case equipped with highly efficient internal damping materials
Stainless-steel non-magnetic screws to minimize the influence of the magnetic distortion; thereby the clear sound has been realized
LC-OFC is used for the wiring material
High quality Neutrik XLR and Gold-plated brass RCA connectors with Teflon insulation
Specifications:
Input impedance: 0-3 / 40 Ohms
Output impedance: 4k Ohms
Frequency response: 10Hz to 100kHz (+-1.0dB)
Channel separation: more than 60dB (20Hz–50kHz)
Ratio: 1:36 / 1:10
Phase characteristics: Within 10° (20Hz–50kHz)
Available in a Silver Aluminum, Black Glossy, Milk White or Raw aluminum finish front panel.
